ALTM 2, incl. cable tie
Contact temperature/pipe contact transducer, with active output
Application
The ALTM 2 is a pipe contact temperature transducer in IP65 housing with quick-release screws. For recording the temperature on lines, pipes (e.g. cold and hot water) or on heating lines for heating control.
Technical Data
| Power supply: | 0-10V 24V AC/DC , 4...20mA 24V DC ±20% |
| Sensor: | PT1000 DIN EN 60751 Class A |
| Measuring range: | Adjustable with Dip switch, see table |
| Ambient temperature: | Transducer -30 ... +60°C |
| Circuit type: | 2-wire connection |
| Process connection: | Plastic cable tie |
| Connection head: | made of plastic, polyamide, 30% glass-ball reinforced, with quick-release colour pure white (similar to RAL 9010) |
| Dimensions: | 70 x 62 x 37 mm |
| Electrical connection: | 0,14 - 1,5 mm² via screw terminals |
| Cable gland: | M16, with tension relief |
| Insulation resistance: | ≥ 100 MΩ, at 20 °C (500V DC) |
| Humidity: | < 95 % r. H., non-condensing air |
| Protection class: | III (according to EN 60 730) |
| Protection type: | IP 65 (according to IEC 529 |
| Accuracy: | see technical data sheet of transducer |
| Standards: | CE conformity, electromagnetic compatibility according to EN 61 326 + A1 + A2, EMV Directive 89/336/EWG |

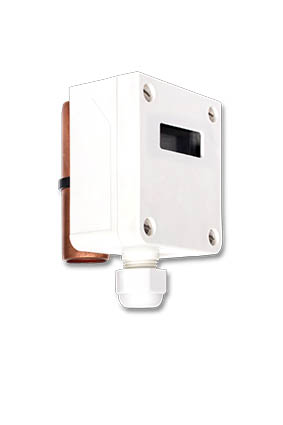

ALTM 2 Display
