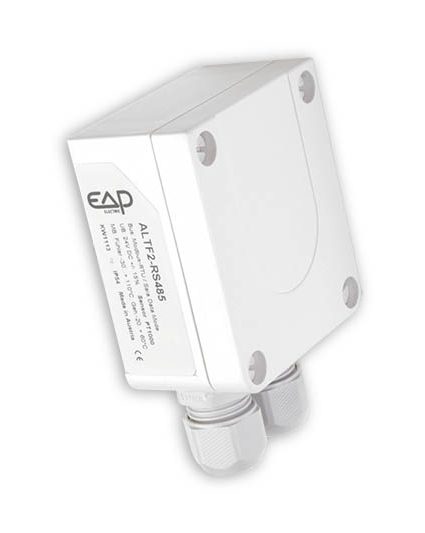

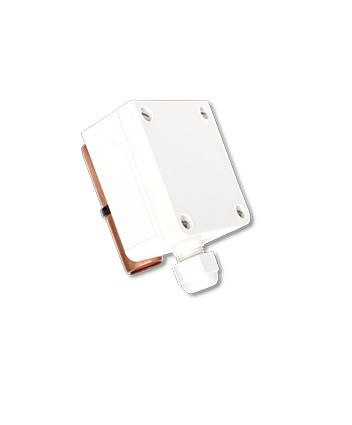

ALTF 2 RS485 incl. cable tie

Contact temperature sensor/pipe contact sensor with RS485 output

The ALTF 2 RS485 is a pipe contact temperature sensor in IP65 housing with quick-locking screw whose signal communicates via RS485 Modbus®-RTU and S-Bus. For recording the temperature by means of surface measurement on pipes (e.g. cold and hot water) or on heating lines for heating control.

Technical Data

Measuring range:- 30 ...+110 °C
Power supply:24V DC ± 20%
Power consumption idle:15mA
Bus protocol:RS485 Modbus®-RTU / S-Bus
Configuration option:via Dip switches (address number, parity, Baud)
Address number:1 bis 63 (0 not allowed)
Parity mode for Modbus:no parity, even parity, odd parity
Saia S-Bus:Data Mode
Transmission rate:4800, 9600, 19200, 38400 Baud
Inputs:PT1000 1/3 DIN (24 bit resolution / 0,1°C)
Ambient temperature:-30°C...+60°C
Storage temperature:-40°C...+70°C
Accuracy:< 0,1% for temperature measurement PT1000
Temperature coefficient:< 0,003% / K for temperature measurement PT1000
Process connection:Cable tie made of plastic (included)
Cable tie dimensions:Ø = 13 - 61 mm (1⁄4 - 2“) 180mm
Connection head:made of plastic, polyamide, 30% glass bead reinforced with quick-release colour pure white (similar to RAL 9010)
Dimensions:70 x 62 x 37 mm
Electrical connection:bis 2,5 mm² via double push-in terminals
Cable gland:1 oder 2 x M16, with strain relief
Insulation resistance:≥ 100 MΩ, at 20 °C (500V DC)
Humidity:< 95 % r. H., non-condensing air
Protection class:III (according to EN 60 730)
Protection type:IP 54 (according to IEC 529)
Normen:CE conformity
EMC:according to EN55011 class B

ALTF 2 RS485 1 M16

ALTF 2 RS485 2 M16
