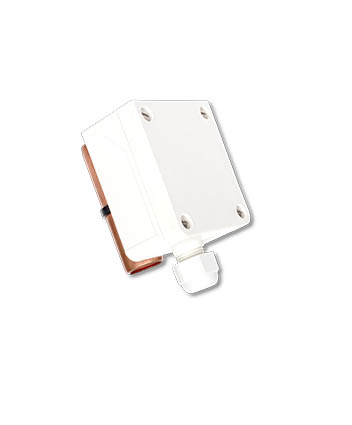

ALTF 2 incl. cable tie
Contact temperature sensor/pipe contact sensor, with passive output
Application
The ALTF 2 is a pipe contact temperature sensor in IP65 housing with quick-release screw. For recording the temperature by means of surface measurement on lines, pipes (e.g. cold and hot water) or on heating lines for heating control.
Technical Data
| Measuring range: | - 30 ...+110 °C |
| Sensors: | For passive sensors see data sheets |
| Circuit type: | 2-wire connection (optional 3- or 4-wire connection) |
| Measuring current: | see resistance table |
| Process connection: | Plastic cable tie (included) |
| Cable tie dimensions: | Ø = 13 - 61 mm (1⁄4 - 2“) 180mm |
| Connection head: | made of plastic, polyamide, 30% glass bead reinforced with quick-release screws, colour pure white (similar to RAL 9010) |
| Dimensions: | 70 x 62 x 37 mm |
| Electrical connection: | 0,14 - 1,5 mm² |
| Cable gland: | M16, with tension relief |
| Insulation resistance: | ≥ 100 MΩ, at 20 °C (500V DC) |
| Humidity: | < 95 % non-condensing air |
| Protection class: | III (according to EN 60 730) |
| Protection type: | IP 54 |
