MU UG-x PT100/PT1000

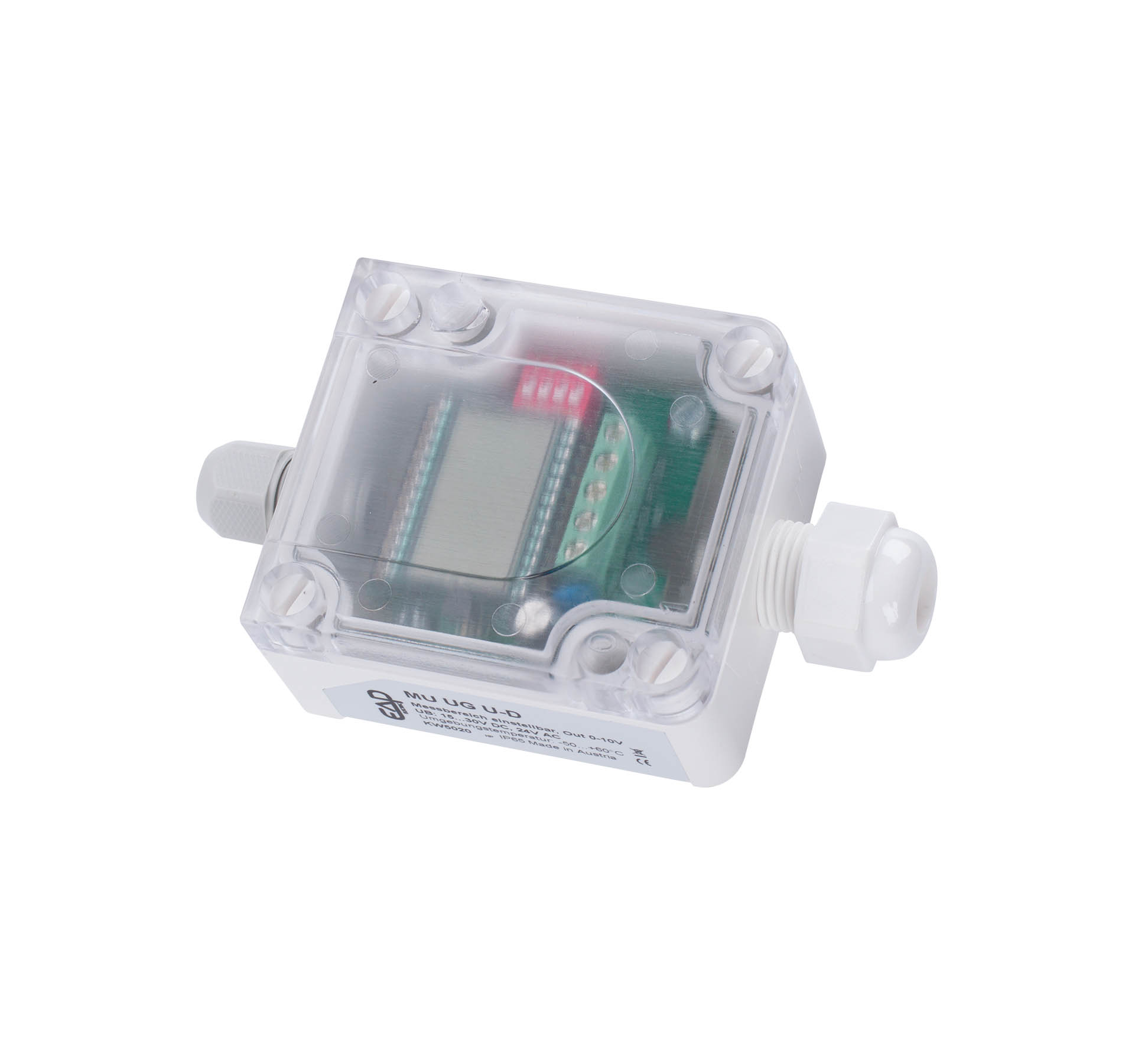

Messumformer für PT100/PT1000 ohne Gehäuse
Application
The digital transducer is used to convert the passive sensor PT1000/PT100 to standard signals 0-10V or 4… 20mA. The different PT sensors are automatically recognised. With the Dip switches you can change between eight preprogrammed measuring ranges

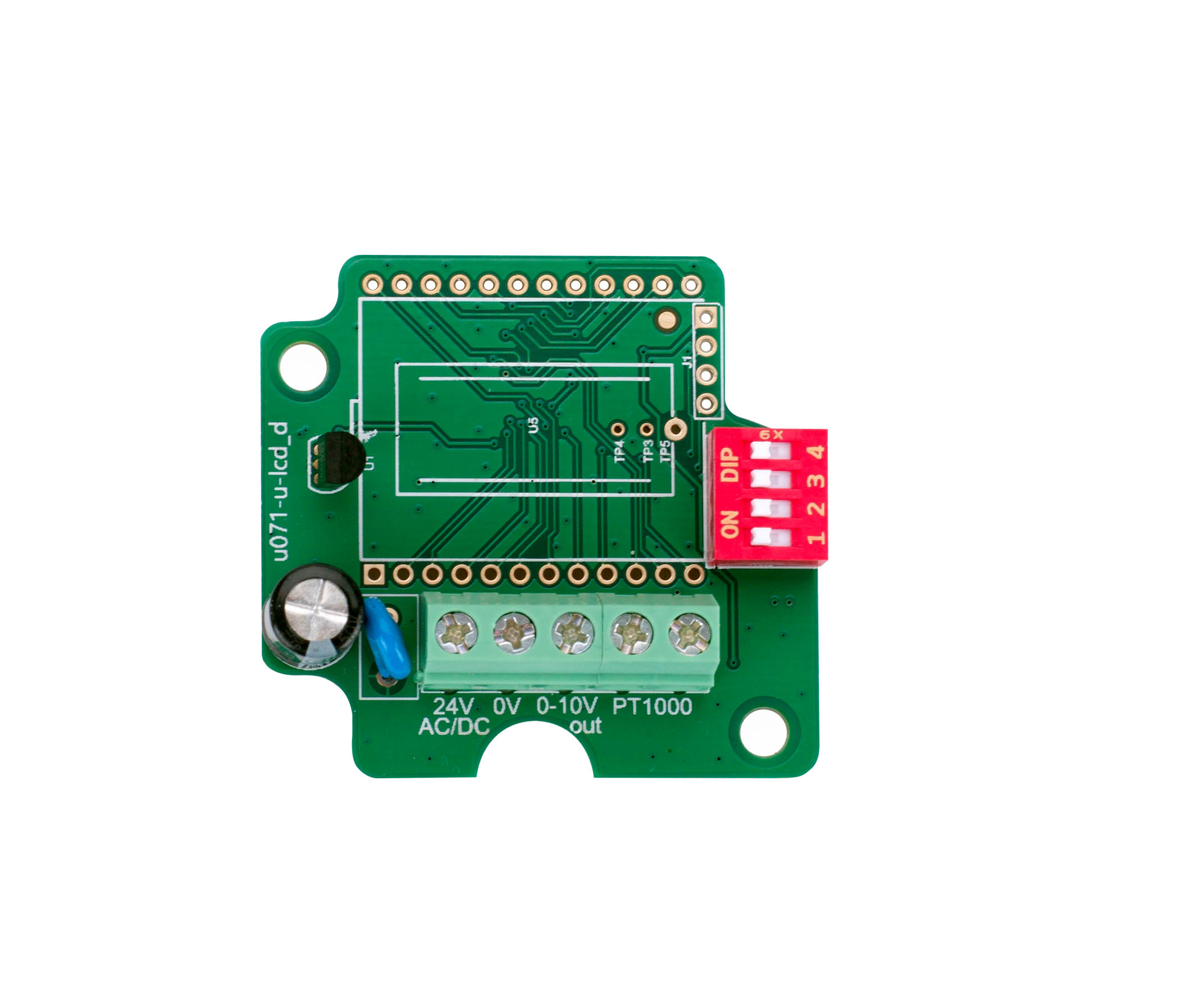

transducer with output 0…10V
| Connection: | 3-wire connection |
| Supply voltage: | 24V AC/DC ±20%, |
| EMC: | according to EN 61326 |
| Measuring element: | PT100/PT1000 (detected by the transducer itself) |
| Operating temperature: | Transmitter -30. +60°C |
| Accuracy:: | typically <0.1% |
| Max. Output current: | 2mA |
| Temperature coefficient: | < 0,003% / K |
| Protection type: | IP00 (open type) |

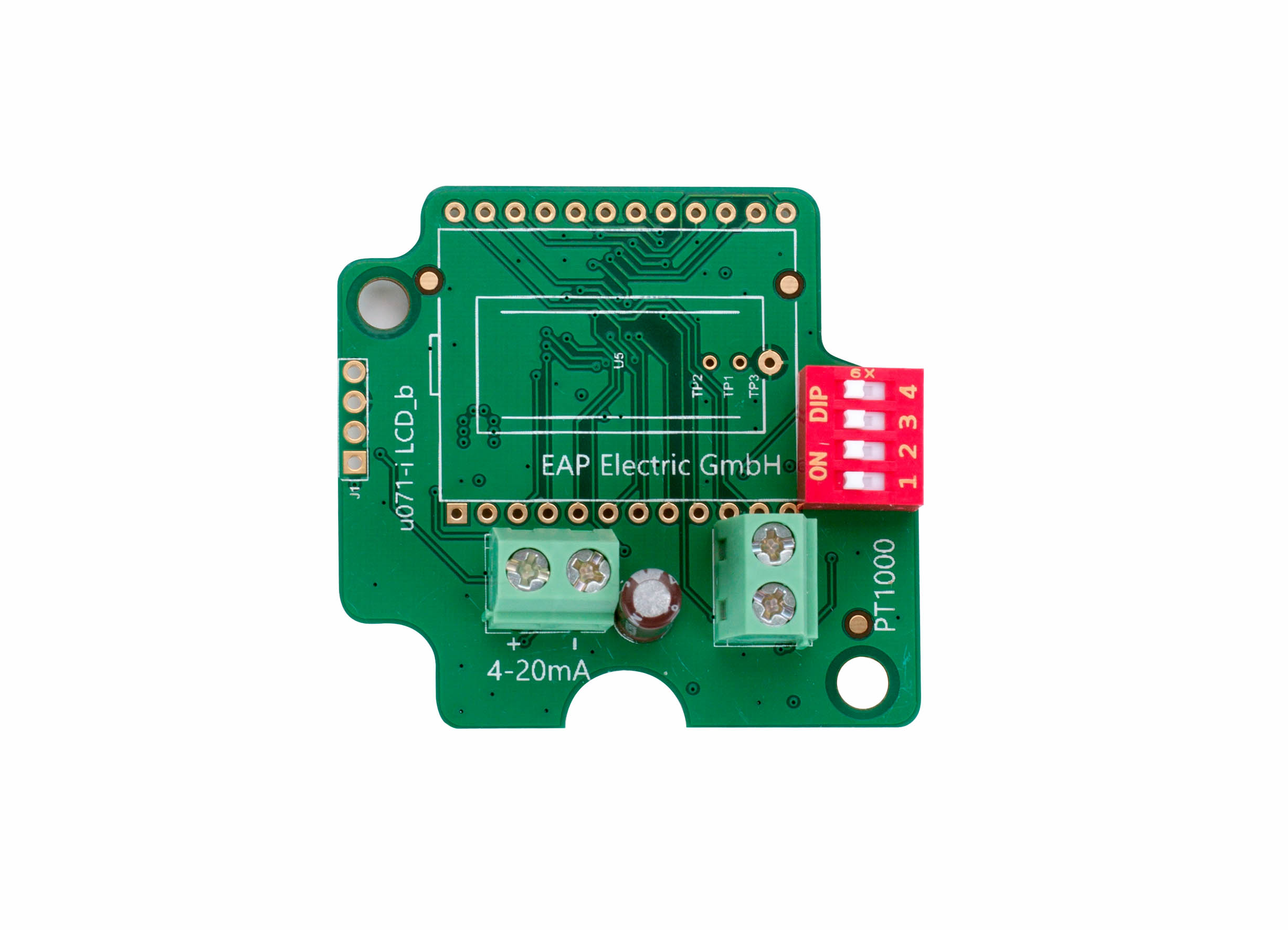

transducer with output 4…20mA
| Connection:: | 2-wire connection |
| Supply voltage: | 24V DC ±20%, supply from 4...20mA loop |
| EMC: | according to EN 61326 |
| Measuring element: | PT100/PT1000 (is recognised by the transducer itself) |
| Operating temperature: | Transmitter -30. +60°C |
| Accuracy: | typically <0.1% |
| Load resistance: | < 550 Ω |
| Temperature coefficient: | < 0,003% / K |
| Protection type: | IP00 (open type) |
Please note: The maximum permissible temperature of the transducer
must not be exceeded!
Measuring ranges adjustable with Dip switch, see table
