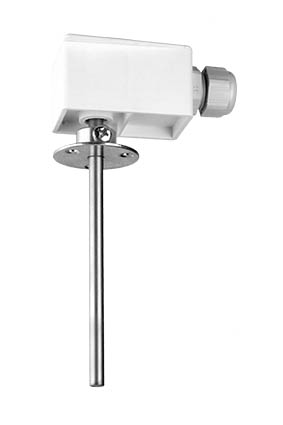

KTF 0 incl. mounting flange
Duct temperature sensor/Air duct sensor, with passive output
Application
The KTF 0 is a duct temperature sensor in IP54 housing with snap-on cover. For detecting the temperature of gases, as in ventilation and air conditioning ducts.
Technical Data
| Measuring range: | - 50 ...+90 °C (Tmax LM235Z = 125 °C) |
| Sensors: | For passive sensors see data sheets |
| Circuit type: | 2-wire connection |
| Measuring current: | see resistance table |
| Protective pipe: | Stainless steel, 1.4571, V4A, Ø = 6mm |
| Connection head: | Plastic, polyamide, with snap-on cover, Colour pure white (similar to RAL9010) Ambient temperature -30/+100°C |
| Dimensions: | 33 x 53 x 37,2mm |
| Cable gland: | M16, with tension relief |
| Electrical connection: | 0.14 - 1.5 mm² via screw terminals on circuit board |
| Process connection: | by means of flange, galvanised steel (included) |
| Insulation resistance: | ≥ 100 MΩ, at 20 °C (500V DC) |
| Humidity:: | < 95 % rH, non-condensing air |
| Protection class: | III (according to EN 60 730) |
| Protection type: | IP 54 (according to IEC 529) |
