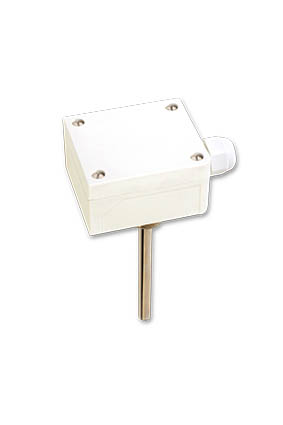

ETF 1 incl. nickel-plated brass thermowell
Screw-in/immersion temperature sensor, with passive output
Application
The ETF 1 is a screw-in temperature sensor in IP65 housing with quick release screws. For recording the temperature of liquid and gaseous media. They are used in pipelines, in heating technology, in storage tanks, district heating compact stations, hot and cold water systems, oil and lubrication circuit systems, in machine, device and plant construction as well as in the entire industrial sector. For aggressive media, use the stainless steel 1.4571 thermowells!
Technical Data
| Measuring range: | - 50 ...+150 °C (Tmax LM235Z = 125 °C) |
| Sensors: | For passive sensors see data sheets |
| Circuit type: | 2-wire connection (optionally 3- or 4-wire) or with 2 sensors) |
| Measuring current: | see resistance table |
| Process connection: | Screw-in thread with G 1/2“ |
| Thermowell: | Nickel-plated brass G1/2", SW 22, Ø = 8mm |
| Protective pipe: | Stainless steel, 1.4571, V4A, Ø = 6mm |
| Connection head: | made of plastic, polyamide, 30% glass-ball reinforced, with quick-release screws, colour pure white (similar to RAL9010) Ambient temperature -20/+100°C |
| Dimensions:: | 70 x 62 x 37mm |
| Cable gland: | M16, with tension relief |
| Electrical connection: | 0.14-1.5 mm² via screw terminals on board |
| Insulation resistance: | ≥ 100 MΩ at 20 °C (500V DC) |
| Max. thermowell pressure: | 16 bar |
| Humidity: | < 95 % rH, non-condensing air |
| Protection class: | III (according to EN 60 730) |
| Protection type: | IP 65 (according to IEC 529) |
