ATF 2
Exterior/damp area temperature sensor, with passive output
Application

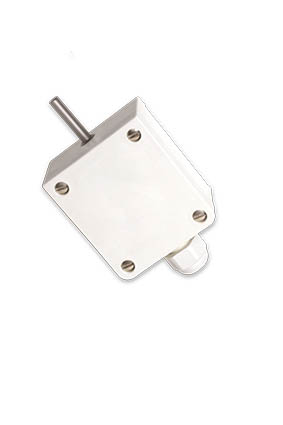

The ATF 2 is an exterior temperature sensor with IP65 housing with quickrelease screws and an external stainless steel sensor tube. For recording the exterior temperature as well as in damp areas. It is used as weather sensors for mounting on exterior walls, in cold stores and greenhouses, in halls, in the industrial sector and in agriculture. Exterior areas, installation is preferably on the north side or in a protected location. In direct sunlight, use the sunshade.
Technical Data
| Measuring range: | - 50 ...+60 °C |
| Sensors: | For passive sensors see data sheets Sensor in external sensor tube made of Stainless steel 1.4571 (optionally also with two sensors) |
| Circuit type: | 2-wire connection (optionally 3- or 4-wire) |
| Measuring current: | see resistance table |
| Housing: | made of plastic, polyamide, 30% glass-ball reinforced, with quick-release screws, colour pure white (similar to RAL9010) |
| Dimensions: | 70 x 62 x 37mm |
| Cable gland: | M16, with tension relief |
| Electrical connection: | 0,14-1,5 mm² via screw terminals on circuit board |
| Insulation resistance: | ≥ 100 MΩ, at 20 °C (500V DC) |
| Humidity: | < 95 % r. H. non-condensing air |
| Protection class: | III (according to EN 60 730) |
