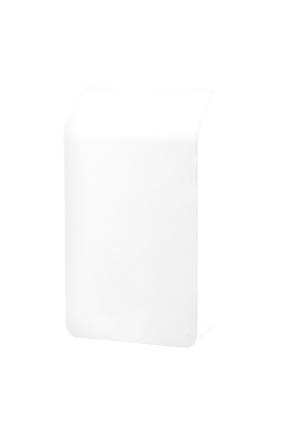

ATF 0
Exterior/damp area temperature sensor, with passive output
Application
The ATF 0 is an exterior temperature sensor in an IP54 housing with a snap-on cover. For recording the exterior temperature in damp areas. e.g. for mounting on exterior walls, in cold stores and greenhouses, halls, in the industrial sector and in agriculture.
Technical Data
| Measuring range: | - 50 ...+60 °C |
| Sensors: | For passive sensors see data sheets |
| Circuit type: | 2- wire connection |
| Measuring current: | see resistance table |
| Housing: | made of plastic, material ABS, snap-on cover with predetermined breaking point for cable guide surface-mounted, colour pure white (similar to RAL9010) |
| Dimensions: | 52 x 93 x 28 mm |
| Electrical connection: | 0,14 - 1,5 mm² via screw terminals on circuit board |
| Cable gland: | Double diaphragm socket M16 |
| Installation: | Wall mounting, cable routing flush-mounted and surface-mounted |
| Insulation resistance: | ≥ 100 MΩ, at 20 °C (500V DC) |
| Humidity: | < 95 % r. H. non-condensing air |
| Protection class: | III (according to EN 60 730) |
| Protection type: | IP 54 (according to IEC 529) |
