GATEWAY WITH WEBSERVER
Modbus®-TCP/IP – Modbus®-RTU Slave/Master or Master/Slave
Application
The gateway with web server Modbus®-TCP/IP – Modbus®-RTU Slave/ Master or Master /Slave is a unit that converts the protocol Modbus®-RTU to TCP/IP or TCP/IP to Modbus®-RTU. Existing serial “slave” units can thus be easily integrated into a Modbus® TCP/IP or Modbus RTU network.
Technical Data
| Power supply voltage: | 9-26V DC |
| Power consumption: | typically 0.5W |
| Ethernet Interface: | Number of connections 1 |
| Speed: | 10/100 Mbps, Auto MDI/MDIX, Auto negotiation |
| Plug-In connector: | 8-pin RJ45 |
| Insulation protection: | 1,5 KV |
| Serial Interface: | |
| Number of connections: | 1 |
| Standard serial: | RS485 |
| Connection: | Screw terminal block |
| ESD protection: | 15 KV for all signals |
| Serial communication paramters | |
| Datat Bits: | 7.8 |
| Stop Bits: | 1, 1.5, 2 |
| Parity: | None, Even, Odd |
| Baud rate: | 300 bps to 115,2 Kbps |
| Serial signals: | RS485: Data+ , Data- , GND |
| Operating temperature: | 0...+50 °C |
| Storage temperature: | 0...+50°C |
| Housing: | Plastic |
| LED-Display: | TX and RX |
| Dimensions WxHxD: | 17.5 x 90 x 55mm |
| Installation: | TS35 profile rail |
| Humidity: | <95% rH non-condensing air |
| Protection type: | IP20 |
| Standards: | CE conformity |
| EMC: | according to EN61326 |

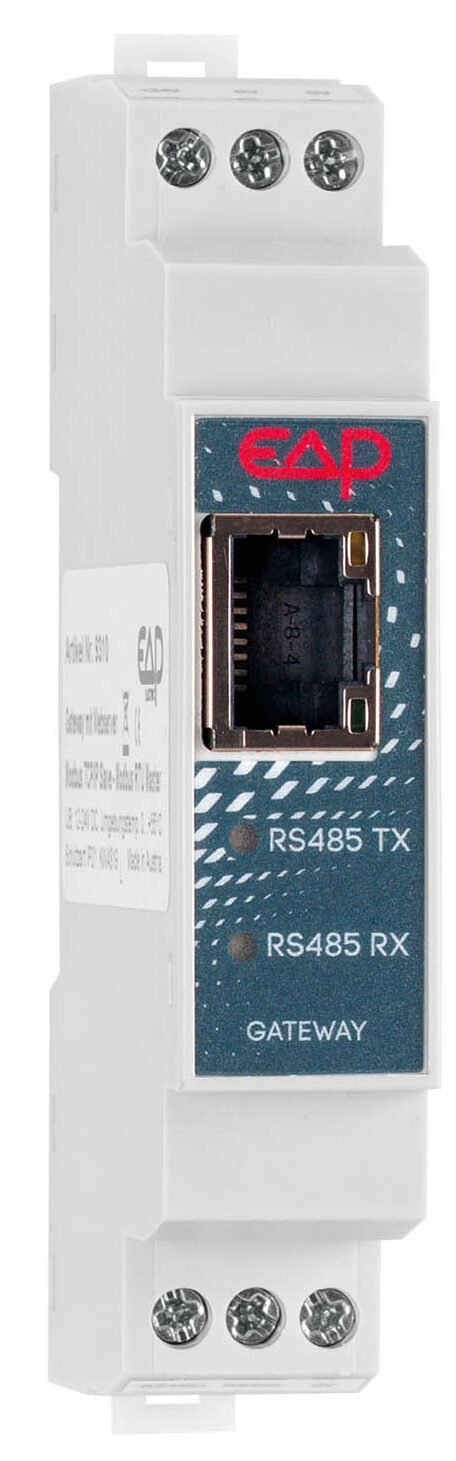

Gateway Modbus-TCP/IP
Modbus-RTU
Slave/Master or Master/Slave
