ACTIVE BUS TERMINATION UNIT RS485
Application
The active bus termination unit RS485 is a bus termination unit that generates a defined level when the bus is open. The application is with nonfail-safe transceivers, with fail-safe transceivers the interference immunity increases considerably. With long lines, galvanic isolation is more favourable because of common-mode signals.
Technical Data
| Power supply voltage: | 24V DC ± 15% |
| Power supply: | galvanically separated |
| current consumption: | 6mA |
| Fixed terminating resistor: | 120 Ohm |
| Operating display: | LED |
| Operating temperature: | 0...+50°C |
| Storage temperature: | 0...+50°C |
| Housing: | Plastic |
| Dimensions BxHxT: | 17.5 x 90 x 55mm |
| Installation: | TS35 profile rail |
| Humidity: | < 95 % rH, non-condensing air |
| Protection type: | IP20 |
| Standards: | CE conformity |
| EMC: | according to EN61326 |

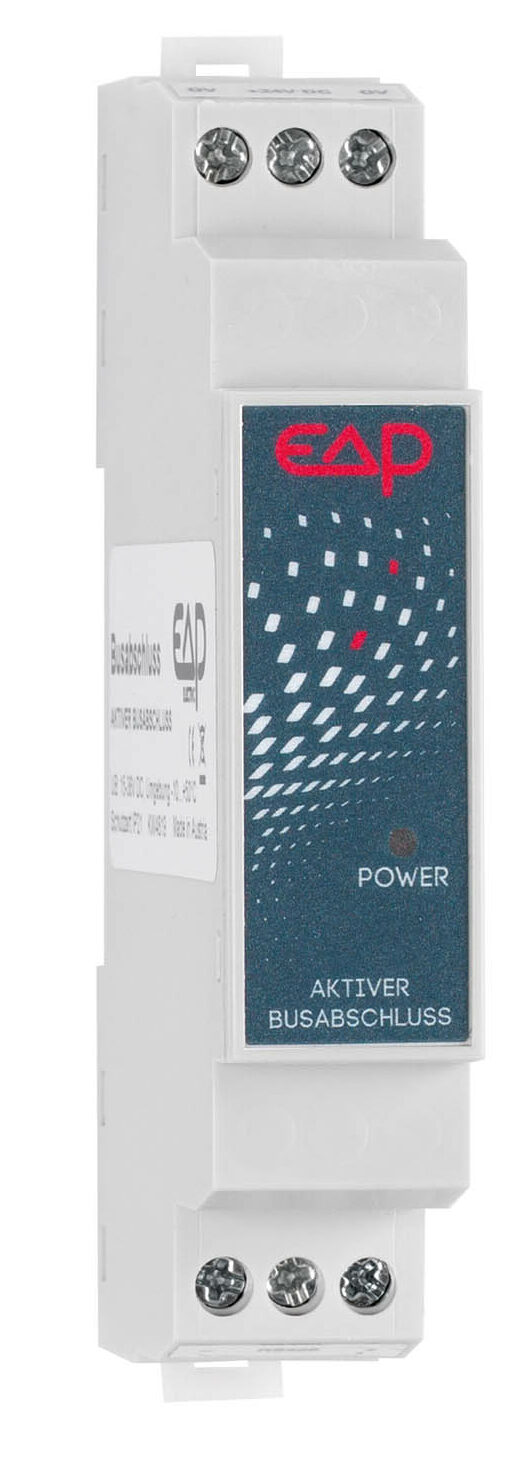

Active bus termination unit
